Advanced structural analysis, dynamic simulation, and engineering solutions for marine, automotive, and defense-industry applications.

By transforming complex engineering problems into high-fidelity numerical models, we develop reliable, verifiable, and actionable solutions.

15+ years in CAE, NVH and powertrain dynamics
Simulation, measurement and engineering judgement in one loop
Technical founder-led delivery.

Core Dynamics Solutions

Propulsion & Torsional Dynamics Advanced Cranktrain & Geartrain Simulation Structural Integrity & Durability Vibro-Acoustic Analysis & NVH Control Diagnostics & Correlation

Extended Engineering Support

Test Systems Engineering RAM Engineering

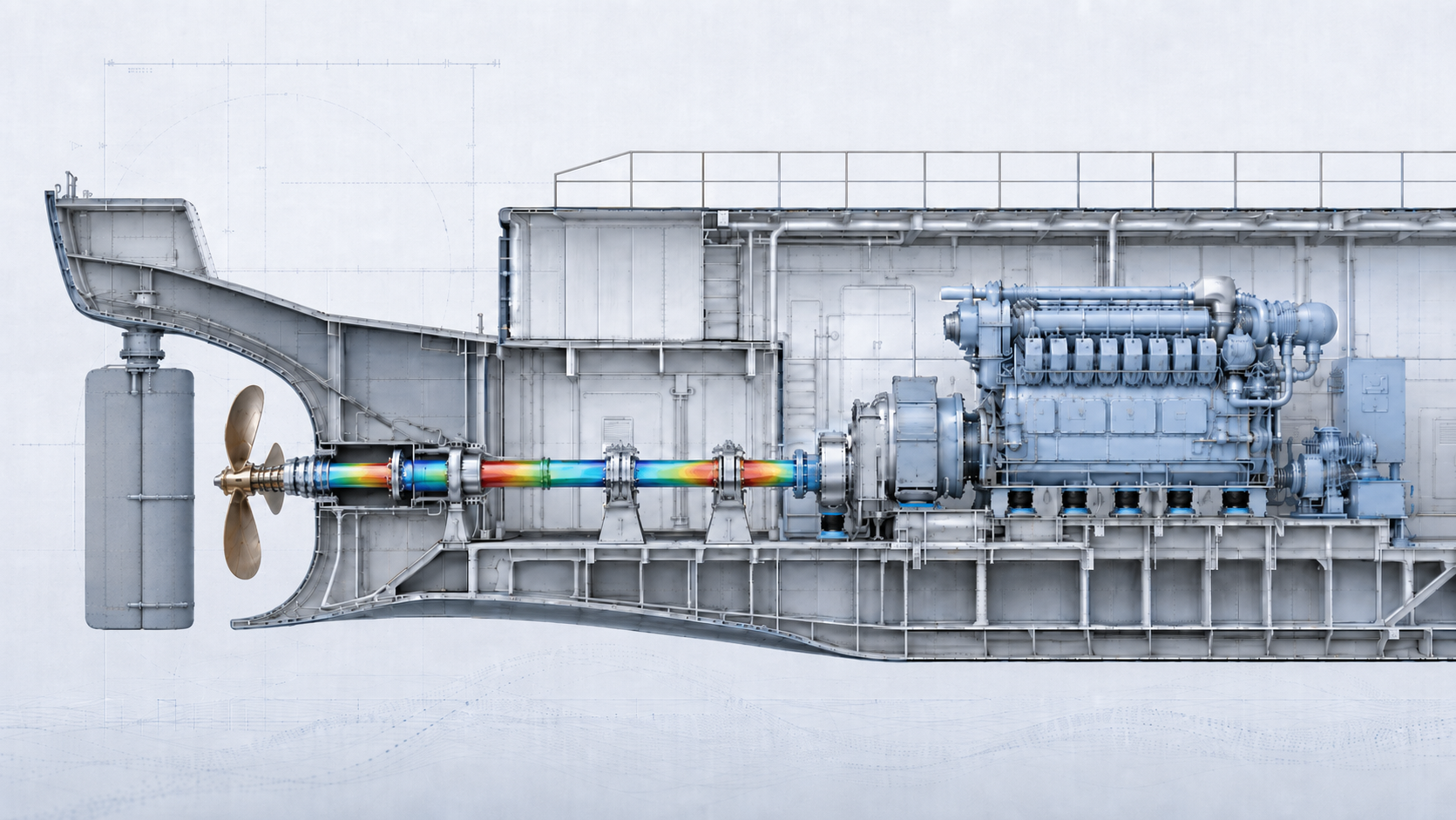

Technical ship engine room longitudinal cutaway visual

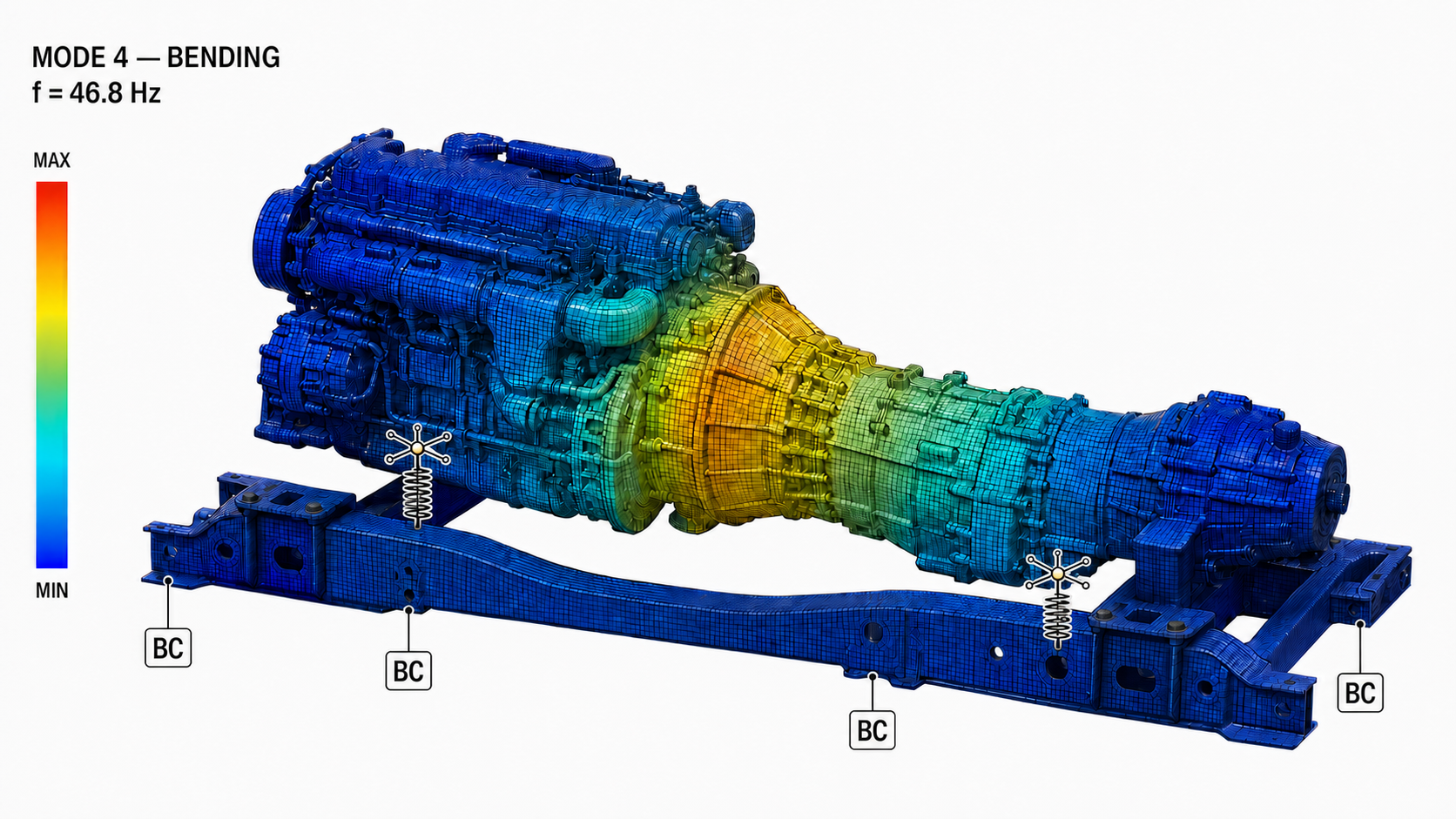

Commercial vehicle engine and transmission bending mode at 46.8 Hz with four under-chassis BC locations and two visible RB2 spring mounts

Start with a Rapid Engineering Risk Review

A fixed-scope technical starting point for an urgent design, validation or troubleshooting decision: data review, a risk map, the minimum information required and a recommended analysis path.

Discuss your case

Engineering Solutions

The same fundamental engineering challenges appear across different industries in different forms. We apply a common advanced-engineering core to structural integrity, dynamic systems, and measurement-based diagnosis—then adapt the solution to the operating context and decision needs of each sector.

Core Dynamics Solutions

Three core paths from technical uncertainty to an engineering decision.

Structural integrity and durability; dynamics, powertrain and NVH; and measurement-based diagnostics and correlation.

Shaftline, Driveline & Torsional Dynamics

Reduce resonance risk, identify barred speed ranges and support class-compliant propulsion and driveline decisions. Dynamic assessment of marine shaftlines and automotive/defense drivelines: torsional, whirling, bending and axial vibration, resonance, barred-speed ranges, shaft alignment and critical operating regions — supported by measurement where required.

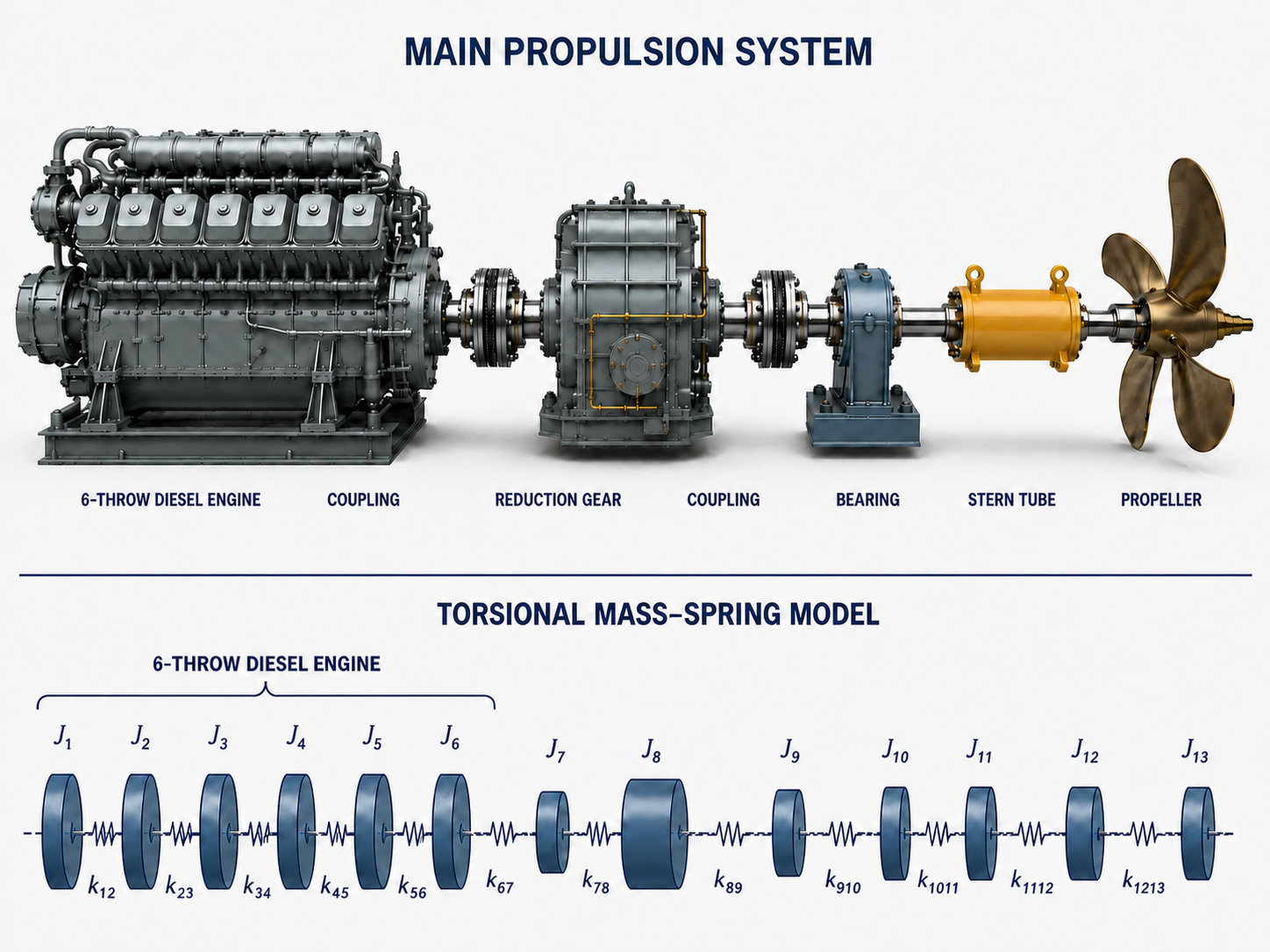

Main propulsion system and torsional mass-spring model ending at the J13 disk

Main outputs

Class-ready TVA report and mass-elastic model
Natural frequency, resonance and BSR assessment
Critical operating condition and stress summary
Design / retrofit recommendation

Modeling & reporting basis

Reported with reference to IACS UR M53, ISO 6336, ISO 1328, ISO 281 / ISO 76, ISO 7919 / ISO 10816 / ISO 20816, and applicable OEM or class requirements.

Applications

Marine Propulsion shaftlines, couplings, propeller shafts

Automotive 1D torsional-vibration analysis of crankshaft, clutch, transmission and driven-load systems; critical-speed, resonance and torsional-stress assessment.

Defense Powerpack drivetrains, tracked/wheeled driveline systems

Advanced Cranktrain & Geartrain Simulation

Improve durability, reduce dynamic-response uncertainty and convert rotating-system behaviour into clear design actions. Reliability, durability and dynamic-response evaluation of cranktrains, geartrains and rotating machinery: crankshaft 3D vibration, bearing loads, Campbell behaviour, gear-mesh dynamics, transmission error, root/contact stress, microgeometry optimization and e-powertrain torque-ripple effects.

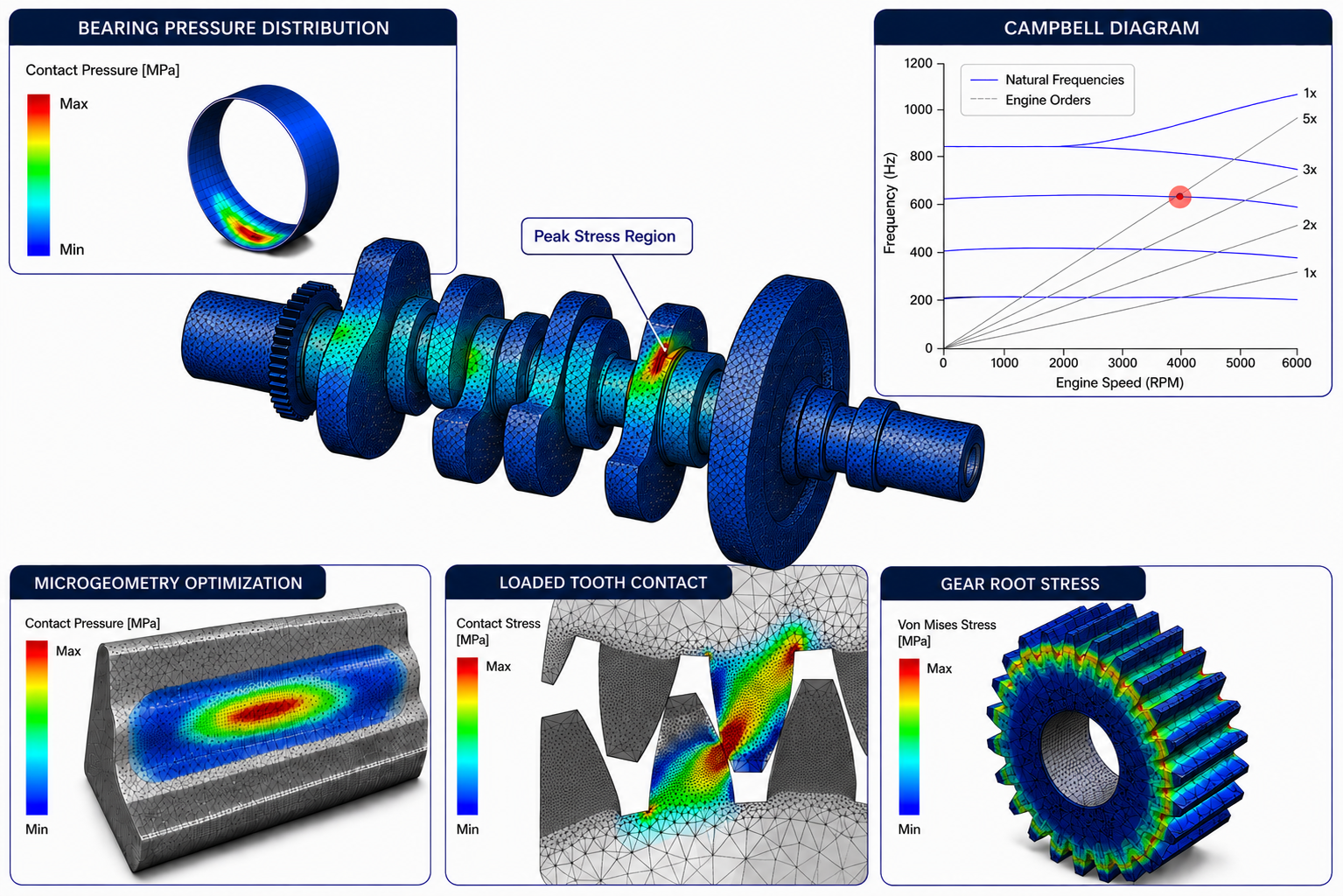

Meshed crankshaft stress distribution with Max Stress callout and CAE analysis panels

Main outputs

Cranktrain 3D vibration and durability report
Bearing pressure, load path and Campbell evaluation
Gear root stress, contact pressure and TE assessment
Microgeometry optimization actions

Modeling & reporting basis

Reported with reference to IACS UR M53, ISO 6336, ISO 1328, ISO 281 / ISO 76, ISO 7919 / ISO 10816 / ISO 20816, and applicable OEM or class requirements.

Applications

Marine Diesel generator sets, pumps, compressors, rotating auxiliaries

Automotive Advanced cranktrain 3D vibration, bearing loads, geartrain dynamics and gear durability

Defense Powerpack rotating systems, fans, pumps and auxiliaries

Structural FEA, Shock & Equipment Qualification

Reduce qualification risk by connecting structural dynamics, stress response and environmental requirements early in the design cycle. Structural integrity and dynamic assessment of foundations, skids, brackets and mounted equipment: static strength, modal behaviour, random/sine vibration, shock response, vibration fatigue and qualification-oriented checks.

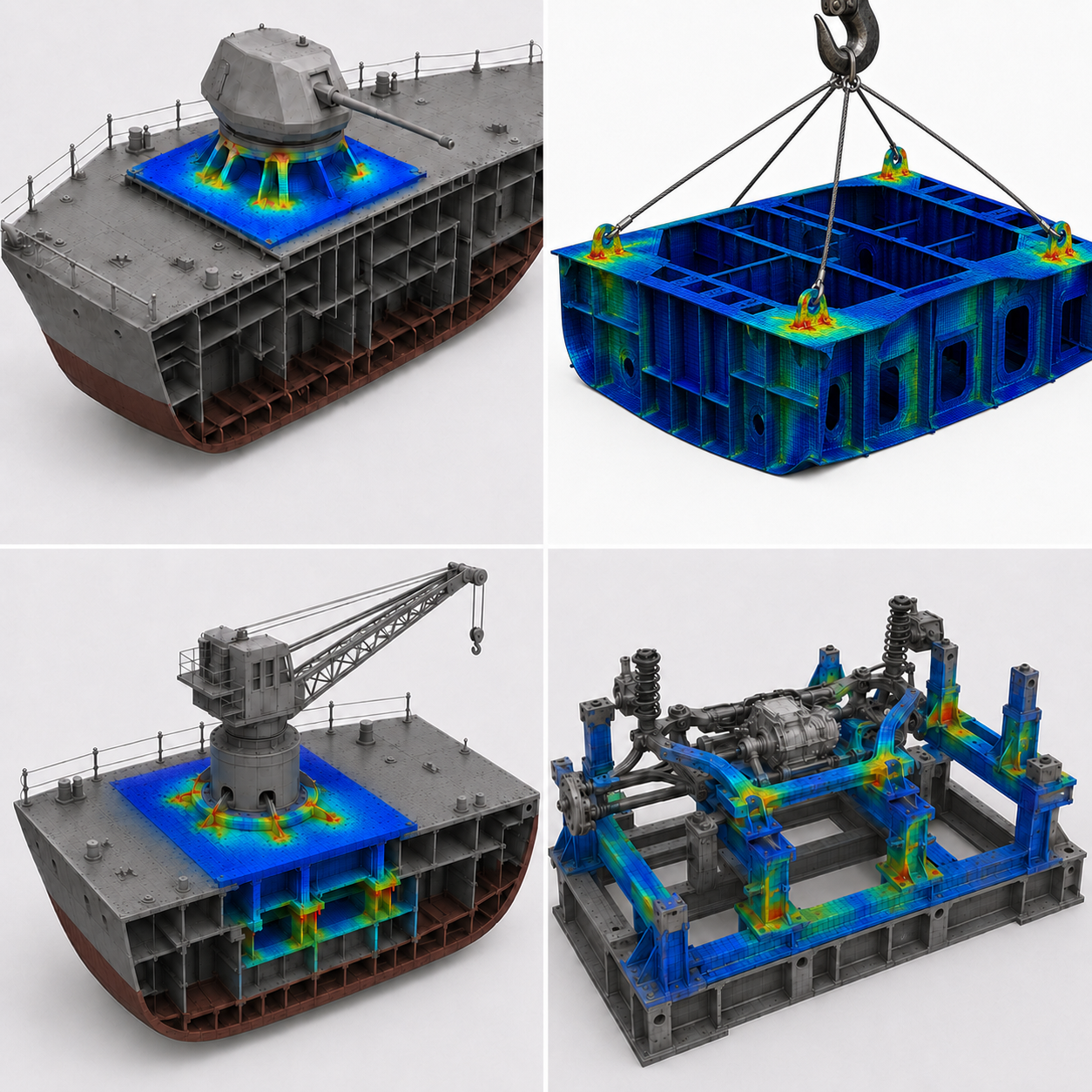

Structural dynamics, shock and equipment qualification visual

Main outputs

Modal, shock, stress and FRF assessment
Foundation / fixture stiffness evaluation
Vibration fatigue and qualification summary
Design modification recommendation

Modeling & reporting basis

Reported according to project requirements, with reference to MIL-STD-810G/H, AECTP-400, DEF STAN 00-35, class rules and customer-specific qualification procedures.

Applications

Marine Engine foundations, skids, deck equipment and support structures

Automotive Powertrain mounts, brackets, housings and test fixtures

Defense Platform structures, payload supports and qualified equipment mounts

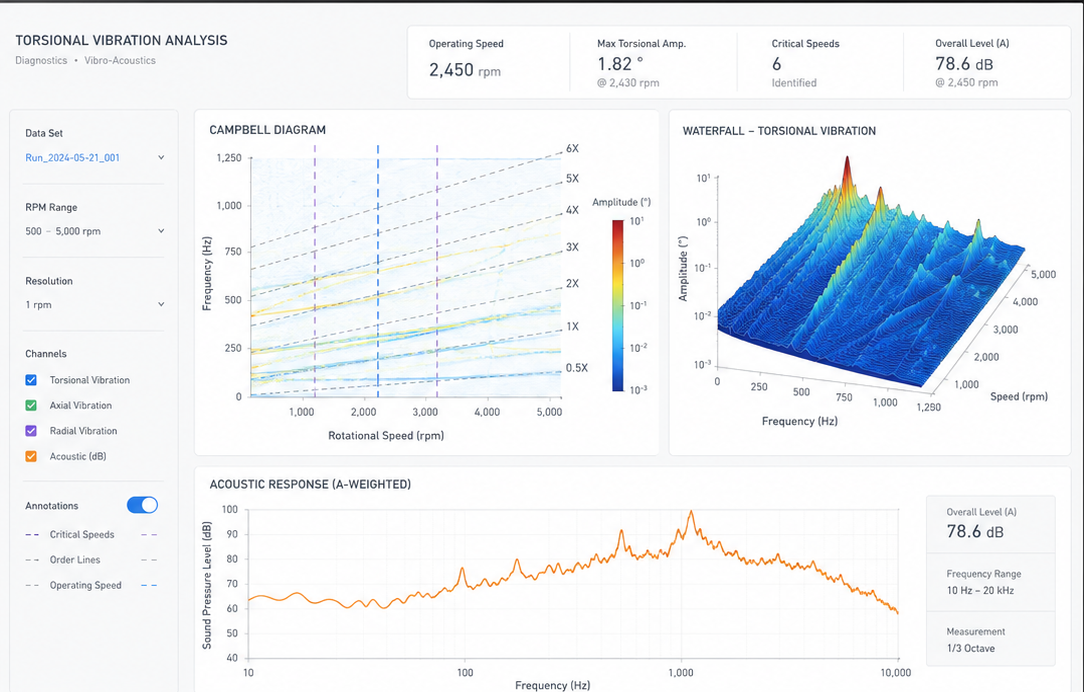

Vibro-Acoustic Analysis & NVH Control

Identify dominant noise and vibration paths and convert NVH symptoms into targeted design or isolation improvements. Vibro-acoustic and NVH control focused on source-path-receiver understanding: gear whine, structure-borne noise, airborne noise, SPL mapping, transfer-path interpretation and practical mitigation actions.

Main outputs

Source-path-receiver diagnosis
SPL, order and tonal-peak interpretation
Mount and structural-path assessment
Mitigation and design recommendations

Modeling & reporting basis

Reported with reference to ISO 10816 / ISO 20816, ISO 3744 / ISO 3746, ISO 9614 where applicable, naval acoustic-signature practices and customer NVH criteria.

Applications

Marine Machinery-induced shipboard vibration and airborne noise

Automotive Gear whine, tonal issues and powertrain NVH

Defense Structure-borne vibration and mission-equipment acoustic behaviour

Measurement, Diagnostics & Test-Simulation Correlation

Turn field or rig measurements into root-cause evidence, model confidence and practical engineering decisions. Measurement, diagnostics and test-simulation correlation using accelerometers, tachometer/order tracking, modal testing and Dewesoft-based data acquisition. The objective is to identify root cause, correlate with simulation and support a design or operating decision.

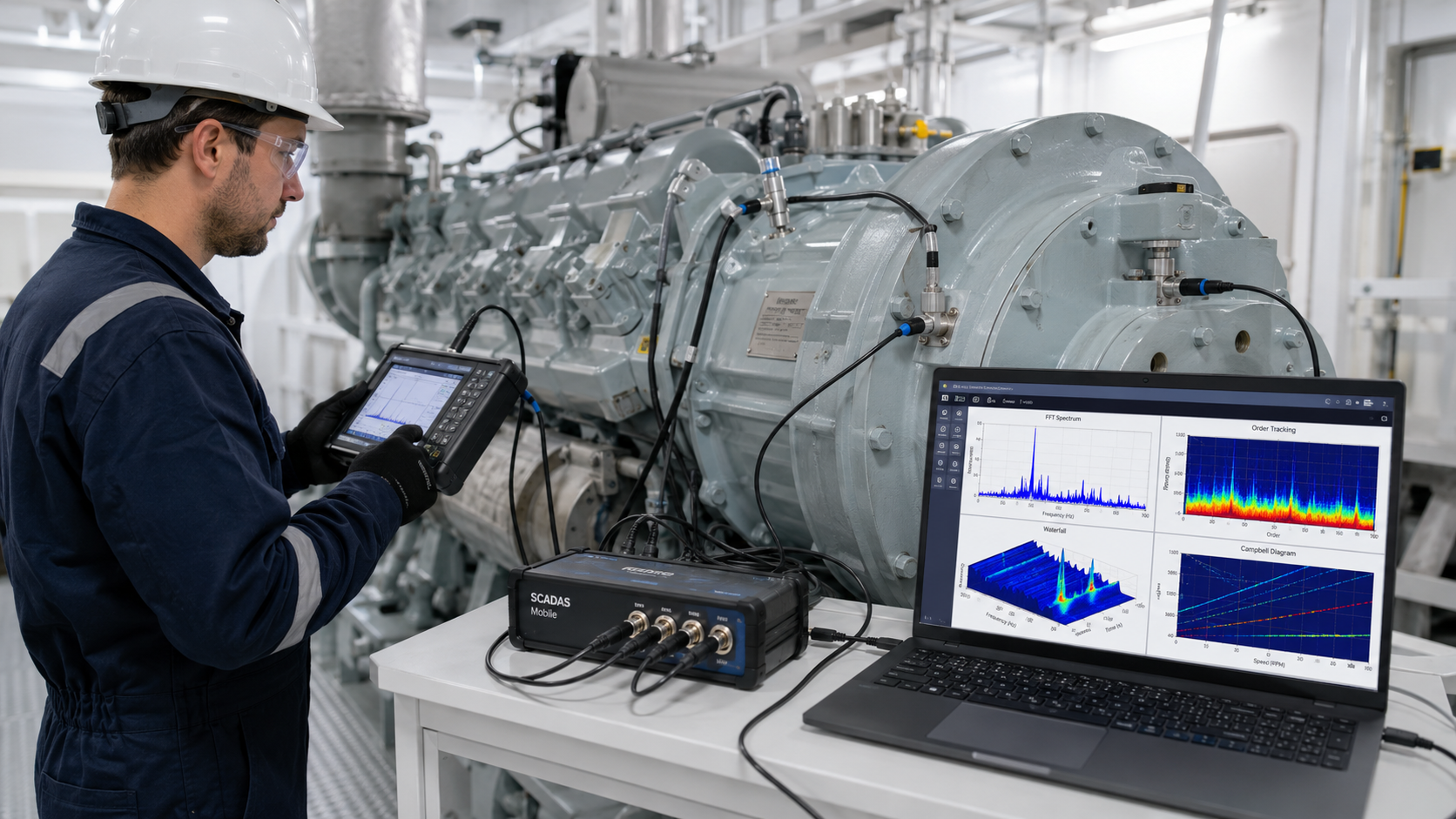

Measurement, diagnostics and test-simulation correlation visual

Main outputs

Measurement plan and Dewesoft DAQ setup
Order tracking, FFT, waterfall and modal results
Test-simulation correlation
Diagnosis report and action list

Modeling & reporting basis

Planned and reported with reference to ISO 10816 / ISO 20816, ISO 7919, ISO 13373, ISO 18436 where applicable, and project-specific test procedures.

Applications

Marine Onboard vibration measurements and validation support

Automotive Dyno, rig and vehicle-level diagnostic correlation

Defense Platform testing, subsystem diagnostics and model correlation

Extended Engineering Support

Focused support modules for test systems and system readiness.

These modules extend the core dynamics workflow with test-system engineering and RAM/FMEA/FMECA evidence where needed.

Test Systems Engineering

Design, integrate and validate subsystem test systems with dynamic behaviour understood before commissioning. We translate the test objective into a practical, instrumented test system—from operating loads and environmental conditions to drivetrain interfaces, rig construction, isolation and commissioning verification.

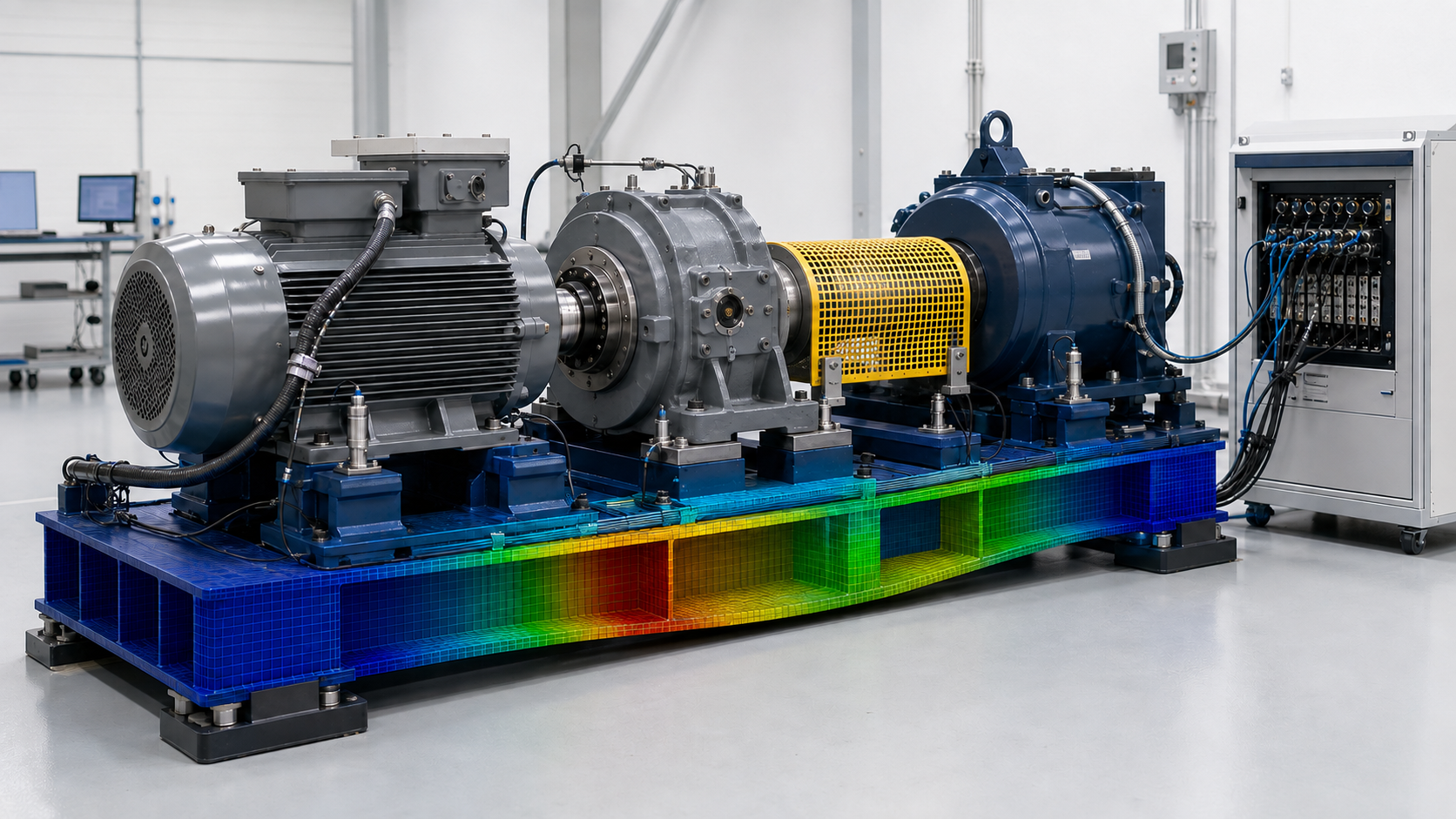

Test-rig structural and dynamic analysis visual

Test system design, integration & commissioning

Definition of verification requirements, requirements–verification traceability and minimum representative test conditions
Definition of operational, maximum-load and environmental test conditions
Design or selection of transmission components, bearings, couplings and interfaces
Test-rig construction, base-frame and isolation-mount design
FEA and MBD-based structural and system-dynamics assessment, supported by commissioning acceleration measurements

Existing test-system troubleshooting

For installed systems with recurring vibration, durability or operational-reliability problems, we combine measurement and analysis to identify the root cause. The findings are converted into an implementable design modification and a verification approach.

Systems engineering & verification basis

Using a proportionate V-model, we define system boundaries, interfaces, verification requirements and the minimum conditions needed for representative testing. Integrated FEA, MBD and measurement correlation then link requirements to rig design, commissioning evidence and acceptance decisions.

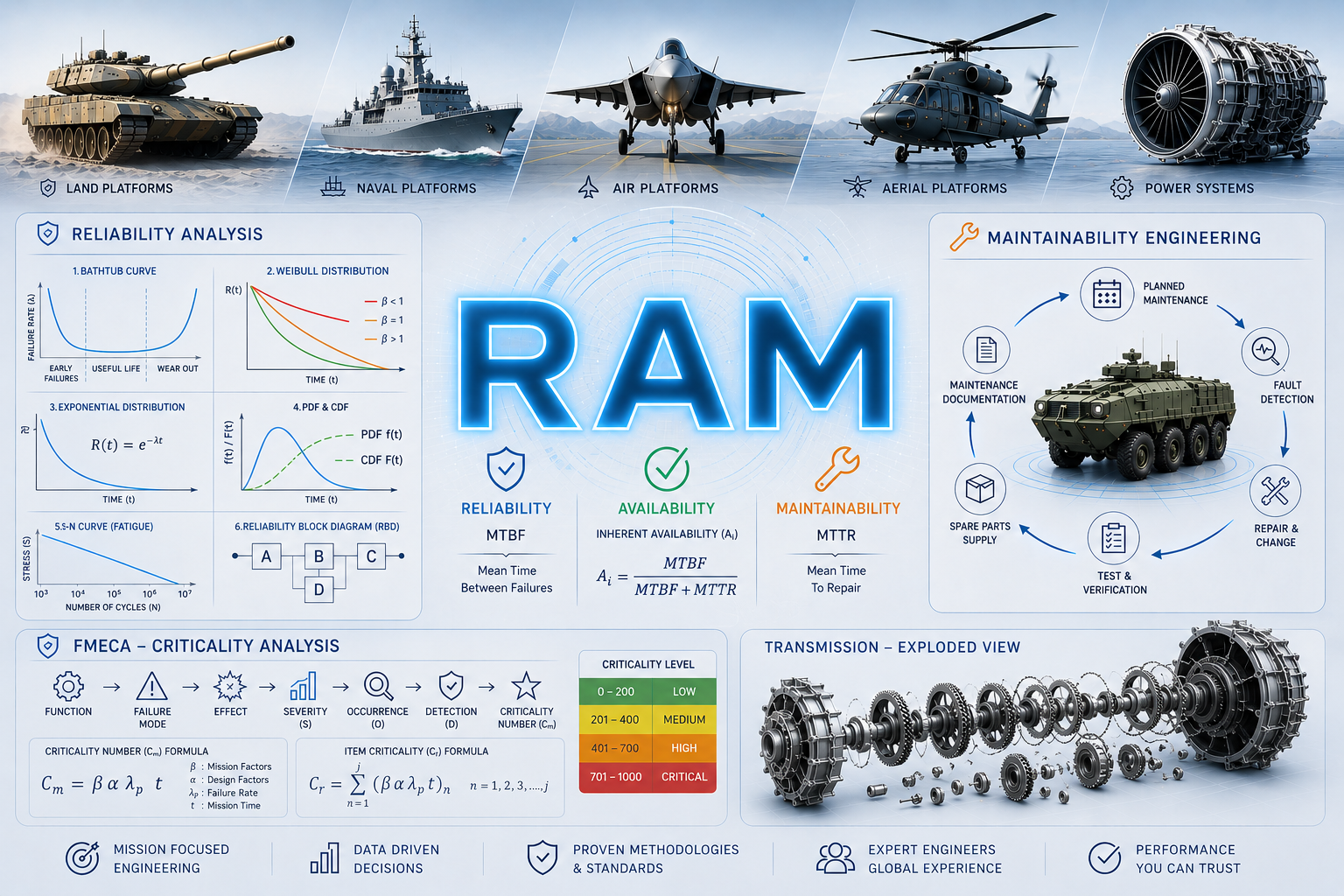

RAM Engineering

Develop integrated RAM analyses for mission-critical systems. RAM Engineering integrates FMECA, reliability, availability and maintainability analyses into a unified engineering framework that supports system development, verification and lifecycle support.

Main outputs

FMECA reports, criticality assessment and single-point failure analysis
Reliability block diagrams (RBD), reliability prediction and statistical life-data analysis (Weibull / Exponential / Normal / Lognormal)
MTBF, MTTF and MTTR estimation with inherent, achieved and operational availability assessment
Maintainability assessment, maintenance concept development, spare parts analysis and logistics support recommendations

Applicable Standards

Engineering studies are tailored to project-specific requirements and performed in accordance with applicable industry standards and customer specifications, including MIL-HDBK-217F, MIL-HDBK-1629A, MIL-HDBK-470A, MIL-HDBK-472, IEC 60300, IEC 60812, IEC 61703, IEC 61025, IEC 61508 and ASD S-Series specifications (S3000L, S1000D and S2000M).

Engineering Focus

Provide the engineering basis for informed design, maintenance and operational readiness decisions through integrated RAM and supportability analyses.

Training

Practical, application-led courses delivered under Phonon Dynamics — from vibration fundamentals to test-simulation correlation. Tailored for OEM, shipyard and defense engineering teams.

Finite Element Analysis (FEA) FundamentalsDuration: 1–2 days
Level: Intro
Format: On-site / online

Fundamentals of Vibration, Dynamics & NVHDuration: 1–2 days
Level: Intro–Intermediate
Format: Case-based

Driveline, Shaftline & Torsional Vibration AnalysisDuration: 2–3 days
Level: Intermediate
Format: Case-based

FMEA / FMECA for Engineering SystemsDuration: 1–2 days
Level: Intermediate
Format: Workshop

RAM Engineering: Reliability, Availability & MaintainabilityDuration: 1–2 days
Level: Intermediate
Format: Workshop

About Us

Phonon Dynamics is an advanced engineering and simulation consultancy focused on vibration, dynamic systems and structural durability. With 15+ years of experience, we combine MBD, FEA and NVH expertise with field insight from marine, defense, automotive and powertrain programs.

From high-fidelity simulation to real-world engineering solutions

How We Can Help

Start with the problem. We connect it to the right engineering analysis and a decision-ready outcome.

Need a class-ready TVA report?

We build the mass-elastic model, assess natural frequencies, resonances, barred-speed ranges and torsional stresses, and deliver a traceable TVA report aligned with class-review requirements.

Unexpected vibration or noise?

We identify the source of unexpected vibration or noise and develop practical solution options.

Facing resonance or drivetrain dynamics problems?

We investigate critical speeds, torsional vibration, gear behaviour and powertrain dynamics problems.

Recurring cracks, deformation or premature failures?

We analyse the root causes of recurring cracks, deformation and premature component failures.

EEXI / CII Supporting Engineering

We perform focused calculations to quantify the structural and dynamic implications of defined efficiency measures, including propulsion-system changes, shaftline modifications and revised operating conditions.

Will your equipment pass an expensive qualification test?

Before costly physical testing, we assess whether the equipment is likely to meet shock, vibration and durability requirements.

Need engineering evidence for Lloyd's Register approval?

We prepare focused calculations, analyses and technical reports to support Lloyd's Register plan approval and technical review.

Concerned about reliability, maintenance or operational readiness?

Through FMECA and integrated RAM analyses, we assess failure risks, maintenance needs, availability and operational readiness.
